Flasher 5 Pro
Programmer for legacy devices
The Flasher 5 Pro is a Flash programmer for M16C, M32C, R8C, R32C, M38000, ST7, and ST9 series of flash microcontrollers. It has been superseded by the introduction and expansion of the Flasher Pro.
Stand-Alone Programmer "Flasher"
The Flasher family eases the implementation into a production site by allowing the flash programming to be triggered manually or remotely.
Model overview

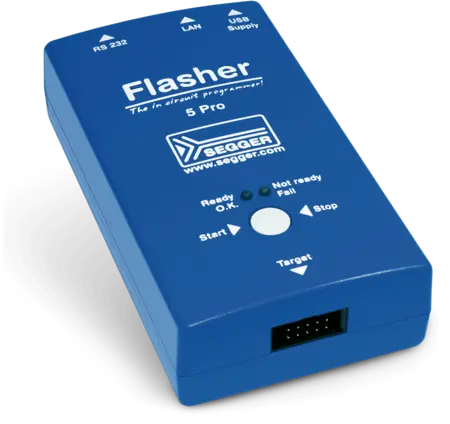

Flasher 5 PRO
Flasher 5 PRO is a programming tool for Renesas M16C/62, M16C/80, M32C, M79, R32C, R8C series of microcontrollers. This tool allows programming of MCU via serial synchronous or asynchronous interface in circuit only. A target system is required.
Main Features
- Serial (in target) programming supported
- 64 MB internal Flash memory to store target program
- PC program allows batch mode processing for usage in automated test systems
- Once set up, Flasher can be controlled without the use of a PC program
Supported Devices
| Supported Devices | Flasher 5 | Flasher 5 PRO | Flasher ST7 |
|---|---|---|---|
| 7641 | |||
| M16C | |||
| M32C | |||
| M375 | |||
| M38 | |||
| M7900 | |||
| R32C | |||
| R8C | |||
| ST7 | |||
| ST9 |

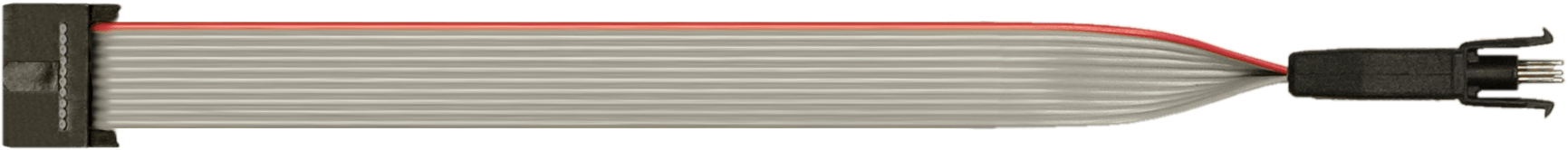

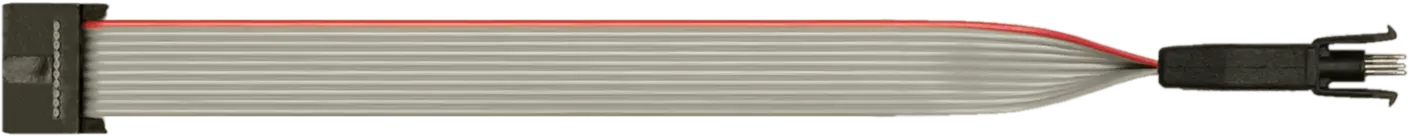

10-pin Needle Adapter
SEGGER offers the 10-pin Needle Adapter, which has been designed to connect Flasher 5, Flasher 5 PRO, Flasher ST7 or Flasher STM8 to a PCB which does not come with a mating connector or programming header. The designed pattern with 3 locating pins ensures that the adapter can only be connected in one way.
The 10-pin needle adapter allows manufacturers to save costs and space on their PCBs since there is no need to provide the PCB with additional connectors. It adapts from the 10-pin, 0.1 inch connector to a 10-pin, 0.05 inch needle pattern.
