Microchip J-32
J-Link - Support for Microchip J-32

Overview

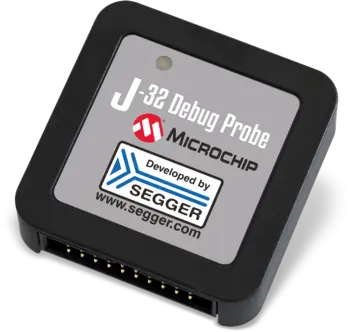

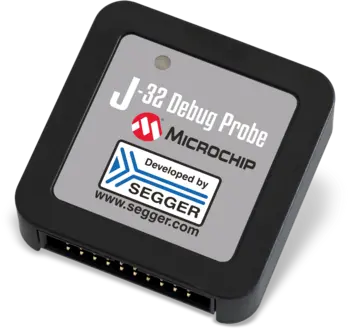

Microchip J-32 supports all 32-bit Microchip devices that are supported by SEGGER's J-Link BASE.

J-32 works with Microchip microcontrollers only. This limitation can NOT be lifted; if you would like to use J-Link with a device from a different manufacturer, you need to buy a separate J-Link. No licenses are included.

List of supported devices

Non-commercial/educational and paid-for commercial software utilities for J-32

Embedded Studio Powerful C/C++ IDE (Integrated Development Environment) for embedded systems. It is specifically designed to provide users with everything needed for professional embedded C programming and development:

An all-in-one solution providing stability and a continuous workflow for any development environment. Works with all of Microchip’s Arm Cortex-M0, M1, M3, M4, M7 and RISC-V based processors.

SystemView: Live visual analysis of captured tasks, interrupts, timers, API calls and user events. It has minimal system impact and works with all of Microchip’s Arm® Cortex®-M0, M1, M3, M4, M7 and RISC-V based processors.

Upgrade BASE to PLUS! Further empower your J-32 to upgrade its features to match that of a J-Link PLUS. This includes licenses for all of the following components:

J-Scope displays runtime data of multiple variables in an oscilloscope format. Simply connect the J-32 Debug Probe to your target, program and start J-Scope.

Each variable can be individually manipulated with familiar oscilloscope controls and features. J-Scope also has minimal system impact and works with all of Microchip’s Arm Cortex-M0, M1, M3, M4, M7 and RISC-V based processors.

Remote Server allows the J-32 Debug Probe to debug from anywhere in the world. This is especially useful when your software expert needs to resolve development or product issues in another region. Remote Server works on all of Microchip’s 32-bit MCU and MPU products.

J-Mem permits direct RAM and Special Function Register (SFR) modifications without a bulky Integrated Development Environment (IDE). Memory can be displayed in an 8-, 16- or 32-bit format and can be exported to a .bin file.

J-Mem is compatible with Windows®, macOS® and Linux® operating systems. J-Mem works on all of Microchip’s 32-bit MCU and MPU products.

Specifications

Specification	Value
Supported OS	Microsoft Windows (x86/x64), Linux, macOS
Electromagnetic compatibility (EMC)	EN 55022, EN 55024
Operating temperature	+5°C ... +60°C
Storage temperature	-20°C ... +65 °C
Relative humidity (non-condensing)	Max. 90% rH
Mechanical
Size (without cables)	46mm x 46mm x 17mm
Weight (without cables)	20g
Available Interfaces
USB interface	USB 2.0 (Hi-Speed); Micro USB
Target interface	JTAG/SWD 20-pin
JTAG/SWD Interface, Electrical
Power supply	USB powered Max. 50mA + Target Supply current.
Target interface voltage (V_IF)	1.2V ... 5V
Current drawn from target voltage sense pin (VTRef)	< 25µA
Target supply voltage	5V (derived from USB voltage)
Target supply current	Max. 300mA
Reset type	Open drain with 100 Ohms series resistor. Can be pulled low or tristated
Reset low level output voltage	V_OL <= 10% of V_IF
For the whole target voltage range (1.2V <= V_IF <= 5V)
LOW level input voltage (V_IL)	V_IL <= 40% of V_IF
HIGH level input voltage (V_IH)	V_IH >= 60% of V_IF
For 1.2V >= V_IF <= 3.6V
LOW level output voltage (V_OL) with a load of 10 kOhm	V_OL <= 10% of V_IF
HIGH level output voltage (V_OH) with a load of 10 kOhm	V_OH >= 90% of V_IF
For 3.6 <= V_IF <= 5V
LOW level output voltage (V_OL) with a load of 10 kOhm	VOL <= 20% of V_IF
HIGH level output voltage (V_OH) with a load of 10 kOhm	VOH >= 80% of V_IF
JTAG/SWD Interface, Timing
Target interface speed	Max. 15 MHz
SWO sampling frequency	Max. 30 MHz
Data input rise time (Trdi)	Trdi <= 20ns
Data input fall time (Tfdi)	Tfdi <= 20ns
Data output rise time (Trdo)	Trdo <= 10ns
Data output fall time (Tfdo)	Tfdo <= 10ns
Clock rise time (Trc)	Trc <= 3ns
Clock fall time (Tfc)	Trc <= 3ns
