J-Link LITE Cortex-M-5V
Debug probe for Cortex-M cores.J-Link Lite CortexM-5Vis a specific version of the SEGGER J-Link LITE debug probe which is designed to be used with Cortex-M devices.
Overview
J-Link Lite CortexM-5V is a specific version of the SEGGER J-Link LITE debug probe which is designed to be used with Cortex-M devices. If you are selling evaluation-boards, J-Link Lite CortexM-5V is an inexpensive debug probe solution for you. Your customers receive a widely acknowledged debug probe for Cortex-M devices which allows them to start right away with their development.
Key features
- Very small form factor
- Fully software compatible with J-Link BASE
- Cortex-M0/M0+/M1/M3/M4/M7 cores supported
- Supported target interfaces: SWD (incl. SWO)
- Debug interface speed up to 2 MHz
- Flash download into supported MCUs
- Standard .05" 9-pin Samtec FTSH connector
- 1.2V - 5V target interface voltage
Please note that J-Link LITE CortexM-5V is available as 9-pin 0.05" Samtec FTSH connector version only.
If you are interested in J-Link Lite, please contact info@segger.com.
J-Link LITE CortexM-5V Specifications
| Specification | Value | ||||
|---|---|---|---|---|---|
| Supported OS | Microsoft Windows (x86/x64), Linux (x86/x64/Arm), macOS (x86/Apple M1) | ||||
| Electromagnetic compatibility (EMC) | EN 55022, EN 55024 | ||||
| Operating temperature | +5°C ... +60°C | ||||
| Storage temperature | -20°C ... +65 °C | ||||
| Relative humidity (non-condensing) | Max. 90% rH | ||||
| Size (without cables) | 41mm x 34mm x 8mm | ||||
| Weight (without cables) | 6g | ||||
| Mechanical | |||||
| USB interface | USB2.0 (Full-Speed), Mini USB | ||||
| Target interface | 9-pin 0.05'' Samtec FTSH connector (J-Link Lite CortexM-9) or 19-pin 0.05'' Samtec FTSH connector (J-Link Lite CortexM-19) | ||||
| JTAG/SWD Interface, Electrical | |||||
| Power supply | USB powered Max. 50mA + Target Supply current. | ||||
| Target interface voltage (VIF) | 1.2V ... 5V | ||||
| Target supply voltage | 4.5V ... 5V (if powered with 5V on USB) | ||||
| Target supply current | Max. 300mA | ||||
| LOW level input voltage (VIL) | Max. 40% of VIF | ||||
| HIGH level input voltage (VIH) | Min. 60% of VIF | ||||
| JTAG/SWD Interface, Timing | |||||
| Data input rise time (Trdi) | Max. 20ns | ||||
| Data input fall time (Tfdi) | Max. 20ns | ||||
| Data output rise time (Trdo) | Max. 10ns | ||||
| Data output fall time (Tfdo) | Max. 10ns | ||||
| Clock rise time (Trc) | Max. 10ns | ||||
| Clock fall time (Tfc) | Max. 10ns | ||||
J-Link LITE CortexM-5V Licensing
J-Link Lite CortexM is only delivered and supported as part of a starter kit, which includes an evaluation board. It is not sold separately. It may only be used with the evaluation board it came with. Support is given via the eval board manufacturer and via SEGGER Forum.
Package Content

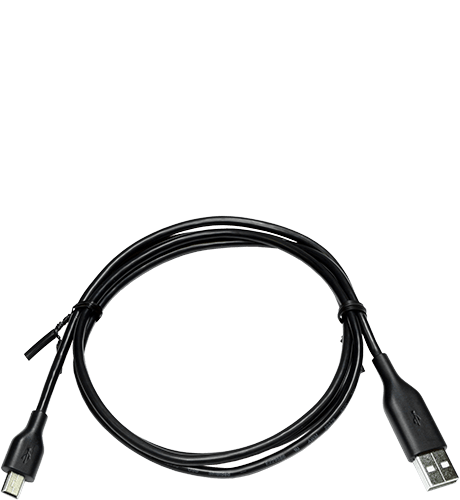

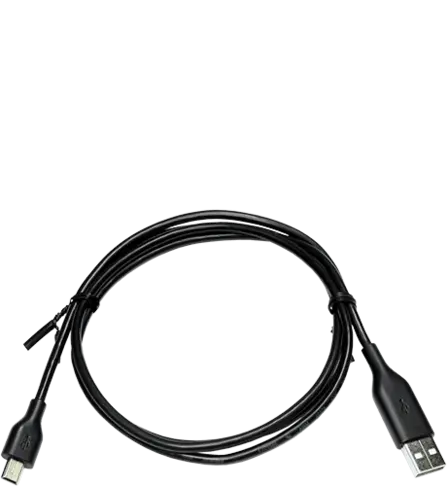

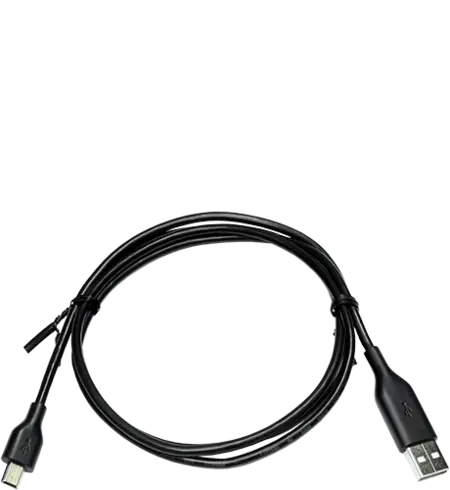

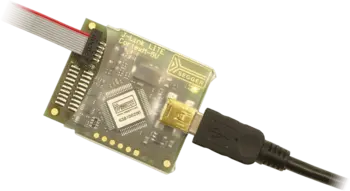

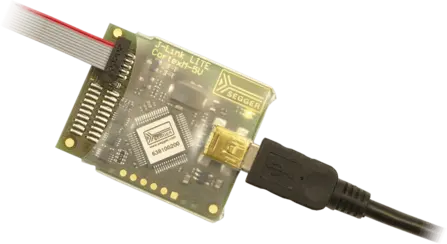

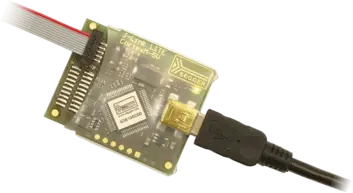

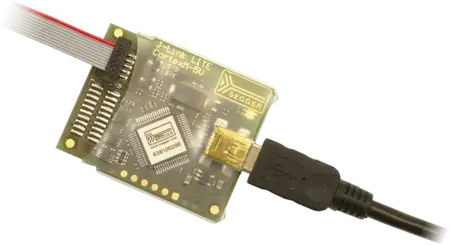

J-Link LITE CortexM-5V with standard .05" 9-pin Samtec FTSH connector

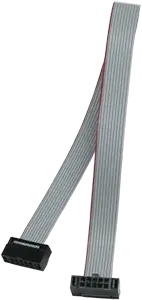

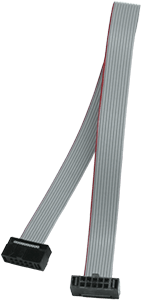

.05" 10-pin ribbon cable
