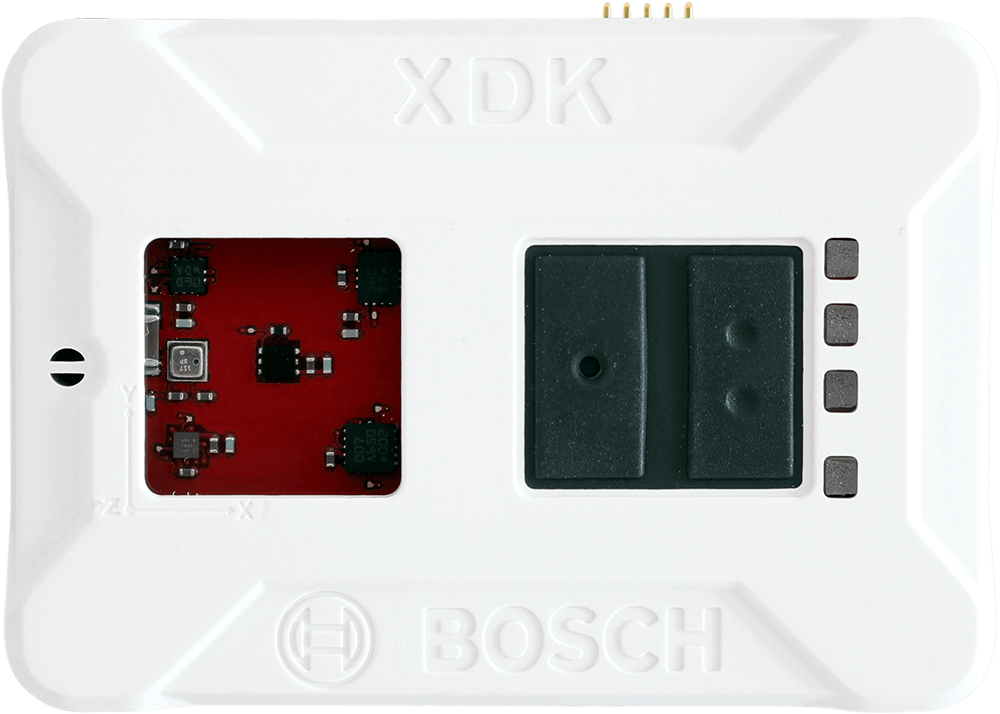

Bosch XDK110
- "XDK Gateway" extension board for easy access to additional MCU functionality
- 10 cm connector cable
- Micro USB 2.0 connector cable
- Mounting plate and screws
- Bluetooth 4.0 low energy IEEE 802.15.1
- Wireless LAN IEEE 802.11b/g/n
- 32-Bit microcontroller (ARM Cortex M3), 1MB Flash, 128 kB RAM
- Internal Li-Ion rechargeable battery 560 mAh
- Integrated antennas
- Power switch
- Green system LED to display the state of charging
- 3 programmable status LEDs (red, orange, yellow)
- 2 programmable push-buttons
- Micro SD card slot
- Interface for J-Link Debug-probe
- Interface for extension board
EFM32GG890F1024
- MCU Core: ARM Cortex-M3
- MHz: 48
- Flash (kB): 1024
- RAM (kB): 128
- I²S: 1
- SPI: 3
- I²C: 2
- UART: 7
- USART: 3
- USB: No
- Dig I/0 Pins: 90
- ADC: 12-bit, 8-ch., 1 Msps
- DAC: 12-bit, 2 ch.
- LCD: Yes
- Package Type: BGA112
- Package Size: 10x10
