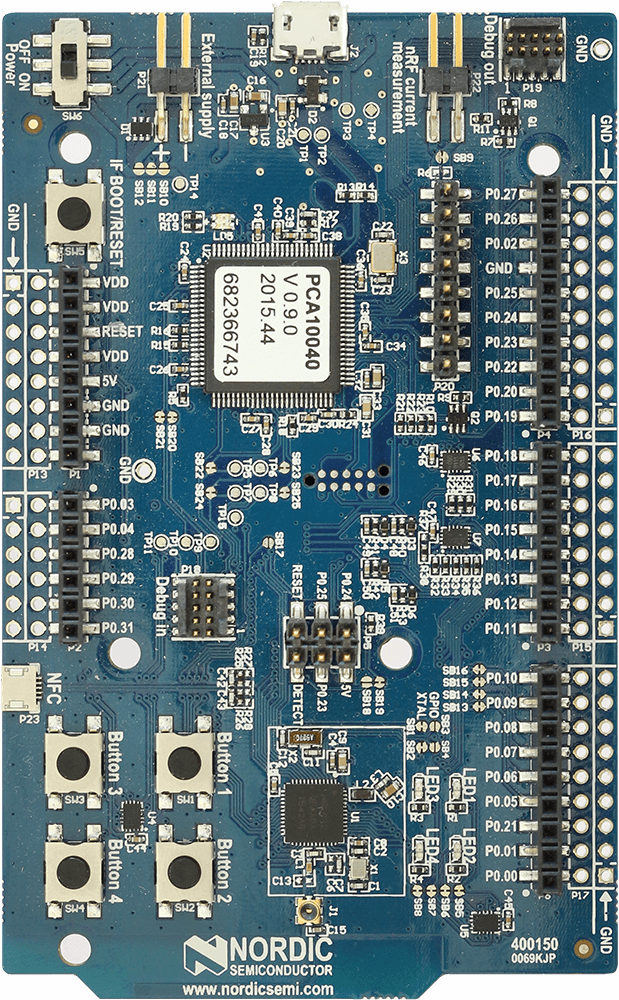

Nordic Semiconductor nrF52-DK
- Low cost single board development kit supporting Bluetooth low energy, ANT and 2.4GHz
- Arduino Uno shield compatible
- ARM mbed enabled
- All GPIO and interfaces available at edge connectors
- J-Link OB Program/Debug supported
nRF52832
- Single chip, highly flexible, 2.4 GHz multi-protocol SoC
- 32-bit ARM Cortex-M4F Processor
- 1.7v to 3.6v operation
- 512kB flash + 64kB RAM
- Supports concurrent Bluetooth low energy/ANT protocol operation
- On-chip NFC tag for Out-of-Band (OOB) pairing
- Up to +4dBm output power
- -96dBm sensitivity, Bluetooth low energy
- Thread safe and run-time protected
- Event driven API
- On air compatible with nRF24L and nRF24AP series
- 2 data rates (2Mbps/1Mbps)
- PPI - maximum flexibility for power-efficient applications and code simplification
- Automated power management system with automatic power management of each peripheral
- Configurable I/O mapping for analog and digital I/O
- 3 x Master/Slave SPI
- 2 x Two-wire interface (I²C)
- UART (RTS/CTS)
- 3 x PWM
- AES HW encryption
- Real Time Counter (RTC)
- Digital microphone interface (PDM)
- On-chip balun
